Torpedo Pumps

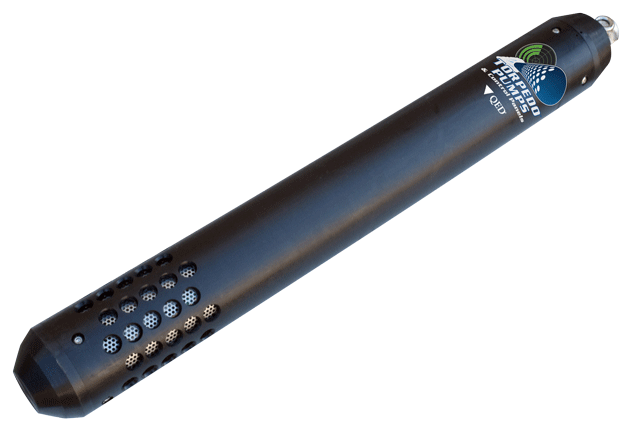

Unique bullet shape HDPE shroud provides a low coefficient of friction and allows the pump to slide easily over internal pipe obstacles.
Product Description
Specification
Applications
Downloads
Product Description
add remove

Electric Torpedo pumps are available in three casing sizes to fit your requirements. Pump shroud is constructed of High-Density Polyethylene (HDPE) for superior strength and durability (lifetime warranty on shroud). Teflon-fitted stainless steel pump end and stainless steel environmental motor withstand the most extreme conditions and chemicals. Complete with stainless steel pull cable and stainless steel quick-connect fitting.

Key Specifications
  • Unique bullet shape provides a low coefficient of friction
  • Small diameter pump (4.5” outer housing diameter) is ideal for smaller diameter risers such as cleanouts, collapsed pipes or bent risers
  • Six and eight inch diameter pumps with flow rates to 1200 GPM
  • High-Density Polyethylene (HDPE) construction for superior strength and durability
  • Rounded end heavy duty Torpedo shroud outperforms and outlasts stainless steel type
  • Standard 304 SS internal construction; available 316 SS available for tough environmental applications
  • Teflon-fitted stainless steel pump end, stainless steel environmental motor withstand most extreme conditions and chemicals
Benefits
  • Lifetime warranty on shroud

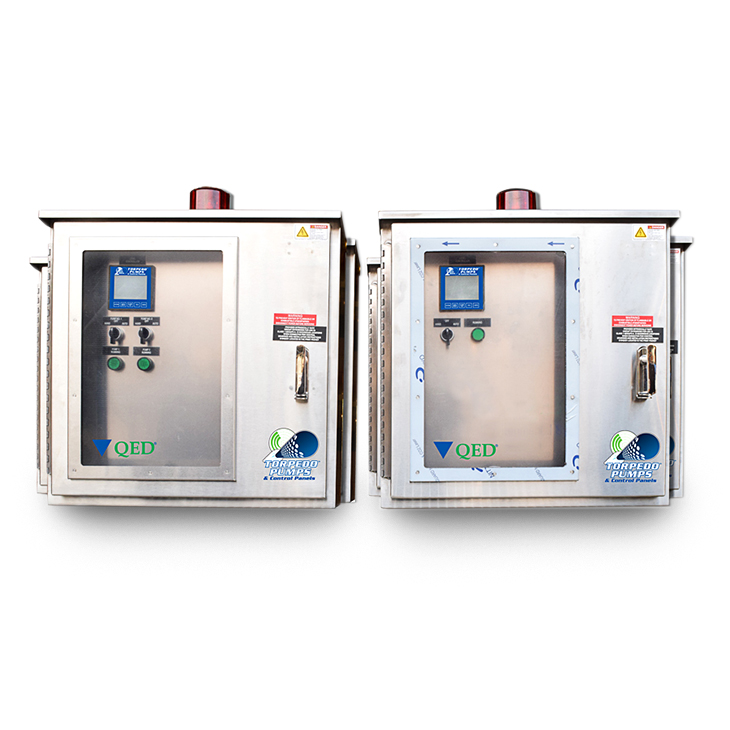

  • Easily change field settings with user-friendly control panel
  • Slides with no shroud wheels to break and hamper pump removal
  • Special rugged duty pump materials, not standard duty water supply type
  • Vertical and horizontal applications
  • Achieves 2 to 1200 gallons per minute flow rate for vertical and horizontal applications
  • Suitable for tough environmental operating conditions
Specification
add remove
Key Specifications
  • Rounded end heavy duty Torpedo shroud outperforms and outlasts stainless steel type housings
  • No shroud wheels to break and hamper pump removal
  • Special rugged duty pump materials, not standard duty water supply type
  • More user-friendly control panels make field setting changes easy
  • Quick Ship on standard pumps and panels in stock
  • Backed nationwide by QED customer support excellence
  • Vertical and horizontal applications
  • Available in 4.5", 6" and 8" diameters to fit most wells
  • 2 to 1200 gallons per minute flow rate
  • 4.5" SlimJim models flow up to 30 GPM, in horizontal or vertical orientation
Applications
add remove
Torpedo Pumps Applications
Landfills

Mining

DOD / DOE Sites

Industrial Sites

Remediation Sites
