Commander Simplex Control Panel

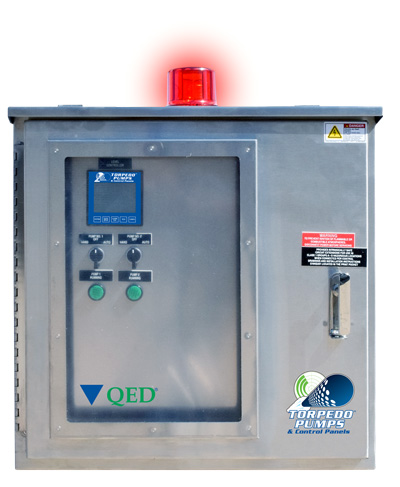

Commander Duplex Control Panel

Commander Electric Pump Control Panels

Next-generation electrical control panels provide numerous options for unparalleled on-site control of the pumping system, housed in a rugged enclosure engineered for safety and ease of maintenance.
Request a quote
Product Description
Specification
Product Description
add remove

Premium electric control panels for pumps are engineered to bring the most sophisticated, easy-interface control and system status display capabilities to the field.

Key Features
  • Touch screen displays flow rate, multiple levels, pump run-time, pump starts and all alarms
  • Breakers, not fuses, for ease of return to service
  • Isolation barriers
  • Inner door meets “finger-safe” safety standards
  • 304 Stainless Steel Enclosure Standard
  • UL Listed
Benefits
  • Easy touch screen entry allows site personnel to handle changes to alarm, transducer flow meter setup
  • Eliminates need for installation and maintenance of separate grounding system
  • Components protected from weather when outer door is opened.
  • Resistance to chemical and environmental corrosion
Specification
add remove
Key Features
  • Commander Series Leachate Pump Control for Simplex or Duplex control
  • NEMA 4X 304 SS enclosure with window kit, inner door and back panel
  • Incoming power surge arrestor;
  • Main disconnect, Non fused;
  • (1 or 2) Pump circuit breaker, sized for 3 HP 240 Vac or 7.5 HP 480 Vac maximum 3 phase pump motor(s);
  • (11 or 2) FVNR motor starter sized for sized for 3 HP 240 Vac or 7.5 480 Vac HP maximum 3 phase pump motor(s);
  • Enclosure heater;
  • Illuminated selector switch, Pump H-O-A/Pump Run;
  • Intrinsically safe barrier, transducer input;
  • External alarm light;
  • Remote Shut Down Pass along contact (NO/NC);

Certifications

UL 698A Listed
