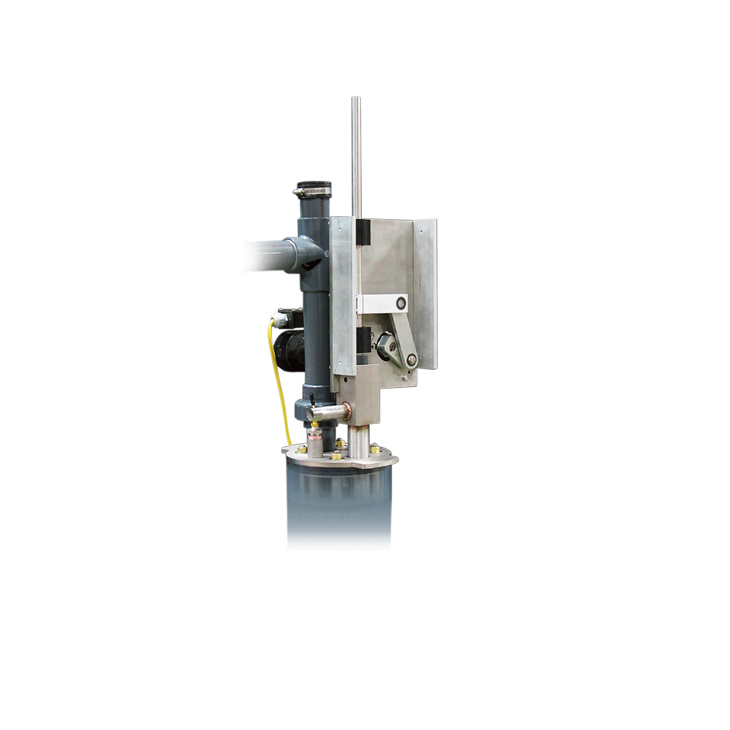

Electric Pump Head

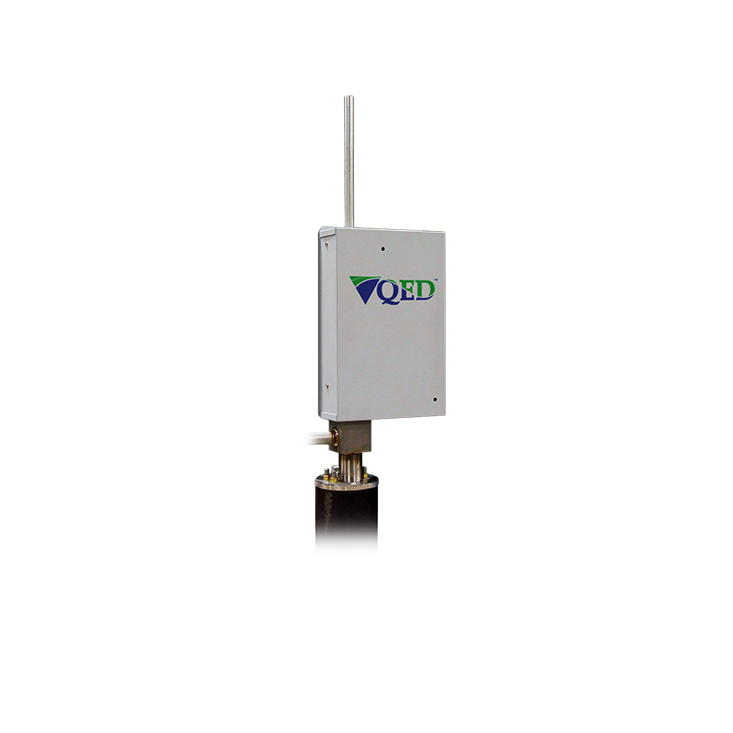

Solar Pump Head

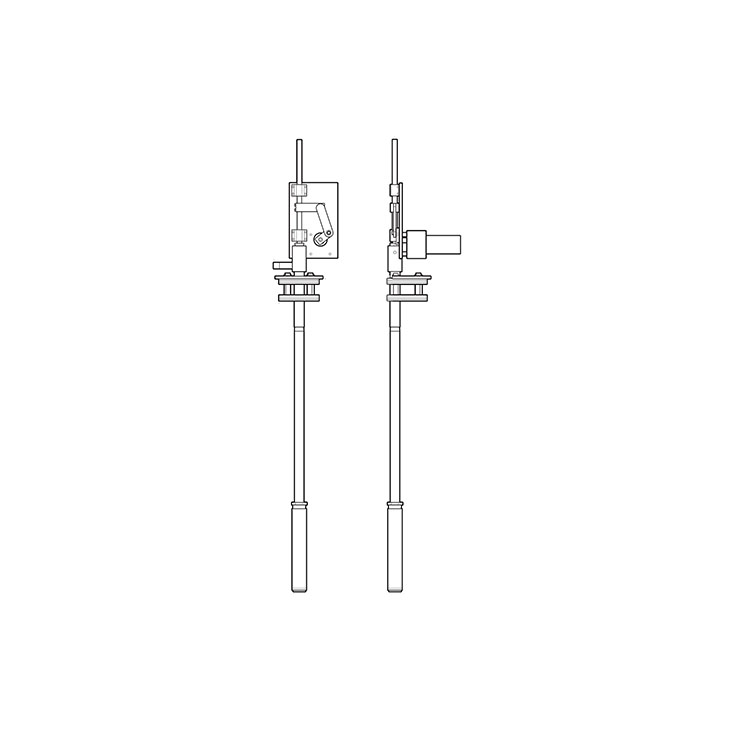

Top Drive Assembly

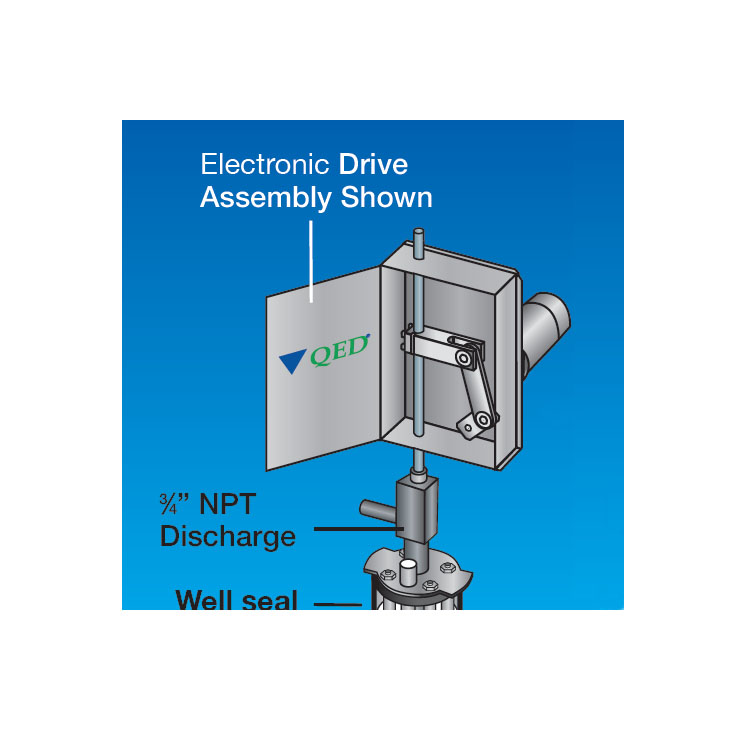

Top Drive Assembly

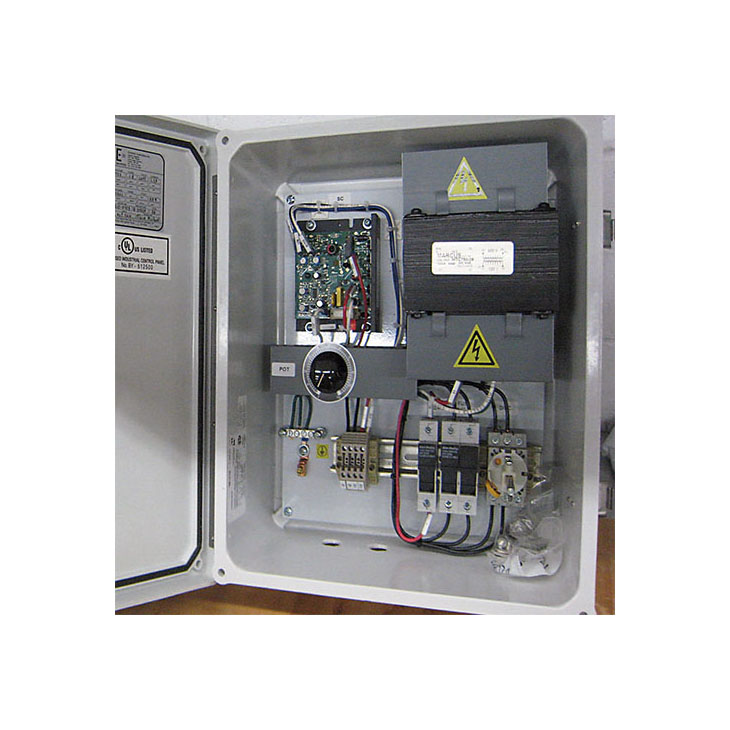

Custom Control Panels

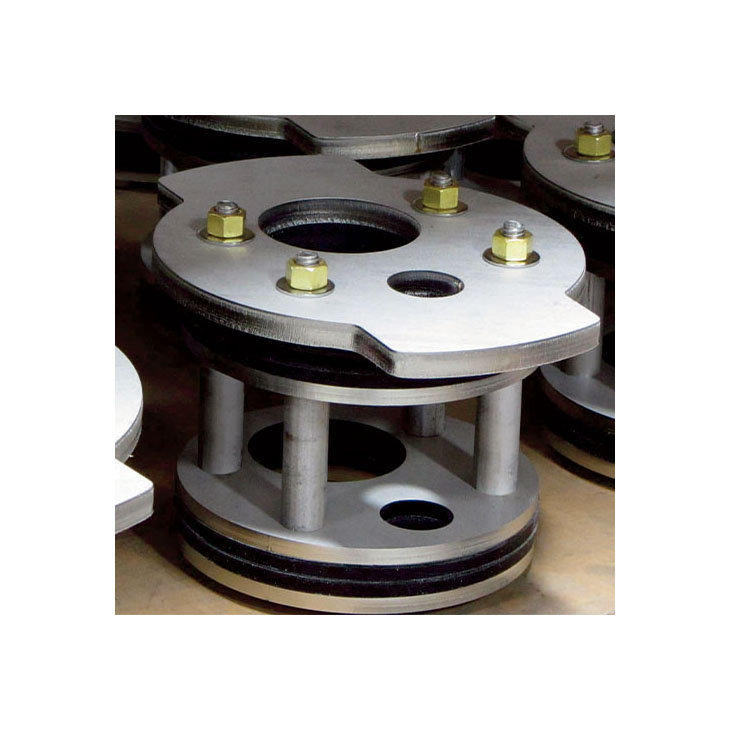

Patented Well Seals

Top-Drive Pumps

QED top-drive pumping systems offer the most flexible pumping solution for every landfill and cleanup pumping need. Designed for reliable, high-performance pumping of almost any fluid under the most difficult operating conditions, this top-drive piston pump allows for substantial flexibility in depth setting, drive and flow options.
Product Description
Specification
Downloads
Product Description
add remove

QED top drive pumps give you flexible drive, depth and flow options to meet your needs. There are no down-well electric motors, and the mechanism provides an optimal blend of power, reliability and efficiency. A compact cylinder stroke results in greater efficiency and lower air or power consumption. Unique bearing design and durable seals deliver longer lifespan with simple installation and maintenance

Key Specifications
  • 100% interchangeable drive assembly
  • Pumps can be upgraded to a higher flow rate with only a change of the lower assembly
  • The intake design of the lower pump requires minimal liquid level to operate
  • Top Drive Design
  • Optional rigid well bore seal
  • Optional custom control panel
  • 2 year warranty
Benefits
  • Switch from solar to electric top drive without removing the well seal
  • Pumps can run dry with nominal impact on long term performance
  • No electricity or compressed air in the well
  • Optional controls with level alarms, beacons and other key parameter controls
Specification
add remove
Key Specifications
  • Solar Powered with flow rates from 1.4 to 2.75 GPM (5.3 to 10.4 lpm)
  • Electric Powered with flow rates from 1.8 to 6.0 GPM (6.8 to 22.7 lpm)
  • Maximum Head (depending on model) 400 ft (120 m)
  • Maximum operating temperature of 120 F (49 C)
  • Corrosion resistant well components with BUNA-N seals
  • Corrosion resistant above ground components (stainless steel, 6061-T6 AL and PVC)
  • NEMA 4X control enclosure with interlocked discontent, overload contactor
  • CSA/UL approved controls
  • Optional variable speed motors and custom voltages to meet site requirements
