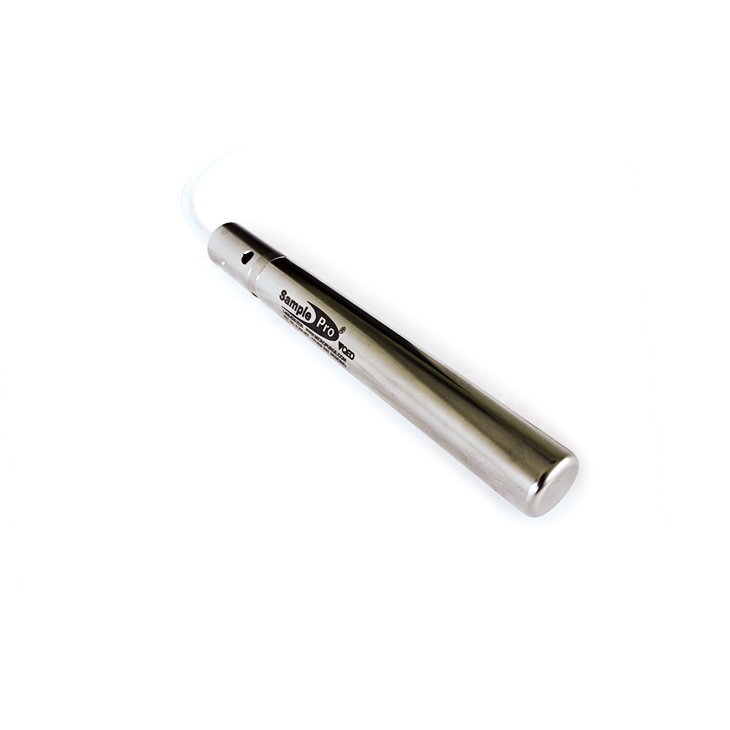

Sample Pro XD Low Flow Pneumatic Groundwater Sampling Pump

The Sample Pro® XD Portable Pump is the first pump developed specifically to bring the advantages of low-flow sampling to sites requiring portable pumps. Pneumatic design can be operated with compressed air or compressed gas cylinder for complete portability.
Product Description
Specification
Downloads
Product Description
add remove

The Sample Pro XD portable pump combines the unparalleled sample accuracy and high reliability of a bladder pump in an easy-to-use design. It runs cool and can run dry without damage, and can be operated using any QED MicroPurge controller options - 12-volt integral compressor, a Honda-powered gasoline-driven compressor, an external compressed air cylinder, or a lightweight backpack with integral CO2 cylinder. The Sample Pro XD pump's reliability and low maintenance make it more economical to use. Its twist-open design makes it easy to change the disposable bladder in seconds. The compact 14.75” length fits in a bucket for easy cleaning between uses.

Key Specifications
  • Low-flow sampling
  • Disposable sampling bladder
  • Stainless steel construction
  • Quick, 1/4 turn tool-less disassembly
  • Interchangeable push-to-lock tubing connection points
  • Sampling as deep as 300 ft (90 meters)
Benefits
  • Minimal turbidity and well surge during sample collection
  • Easy to replace bladder or fast field cleaning
  • Robust construction is resistant to most leachate and groundwater chemicals
  • Fast and easy service for quick turn-around between sample wells
Specification
add remove
Key Specifications
  • 303 Stainless Steel body, inlet and discharge housing
  • 316 Stainless Steel check balls
  • Polyethylene (LDPE) bladder
  • Viton O-ring (EPDM optional)
  • Maximum lift 300 ft (90 meters)
  • Flow rates 1.3 lpm @ 25 feet; 0.65 lpm @ 100 ft (3/8" OD discharge tubing, 10 feet submergence)
Downloads
add remove
Sample Pro XD Low Flow Pneumatic Groundwater Sampling Pump Downloads
Product Data Sheets & Specifications
Product Manuals & Drawings
FAQs
Related Downloads
Download Selected Files
Download All Files

Certifications

PFAS Free

Product Support

Need support for the Sample Pro XD Low Flow Pneumatic Groundwater Sampling Pump?

Related Products

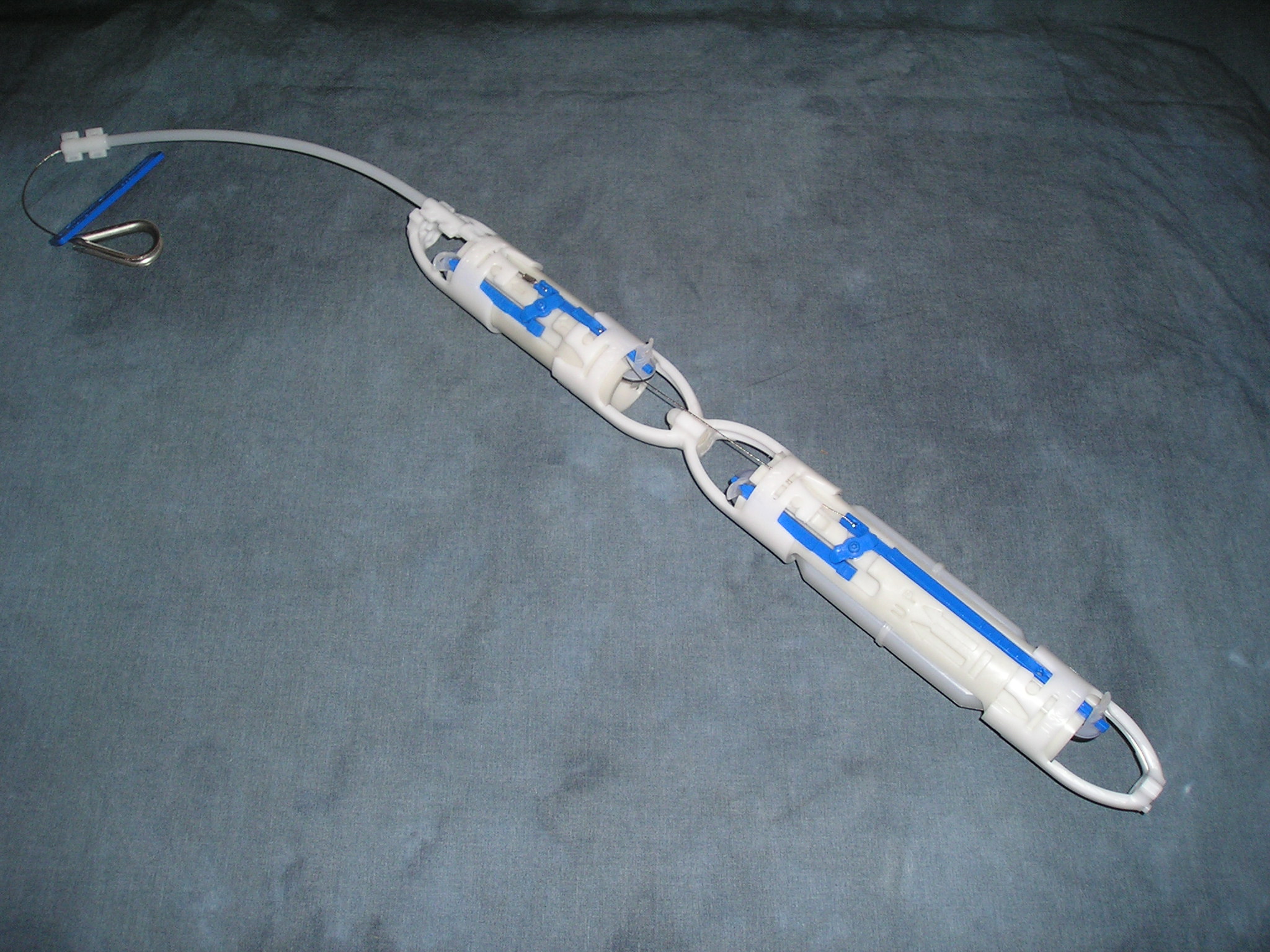

Snap Sampler
