Programmable LNAPL Skimmers

The SPG version uses a specific gravity float and the SOS version uses a hydrophobic screen to exclude water. All Genie skimmer systems pump the LNAPL using a special bladder pump with high suction capability, positioned above the floating inlet section of the system. The use of a bladder pump eliminates air contact with the LNAPL fluids, minimizing emulsification and eliminating VOC emissions. The Programmable Genie uses an electronic controller mounted outside the well to allow adjustment of pump cycles and off times. A complete line of matched accessories is available to help with installation and performance, including in-well tubing, well caps, ON/OFF timers, LNAPL collection tank full shutoffs and other items.
Request a quote
Product Description
Specification
Applications
Downloads
Product Description
add remove

Genie® skimmers are safe, reliable and complete systems for removing floating LNAPL layers from wells. The SPG and SOS® Programmable Genie skimmers are air-operated selective LNAPL removal systems with a high suction pump and a floating inlet designed to follow the LNAPL layer as the ground water level fluctuates.

Key Specifications
  • Specialized bladder pump is extremely durable, provides high suction to maintain flow and eliminate contact of drive air with pumped fluid.
  • Choice of two types of selective floating inlets
  • Programmable cycling.
  • Available in several different lengths and diameters to accommodate specific well conditions.
  • Low air consumption.
Specification
add remove
Key Specifications
  • Available in 2" and 4" pump bodies
  • Recovery Rate: 160-320 gpd (605 - 1200 lpd)
  • Maximum pump depth: 150 ft (45 m)
Applications
add remove
Programmable LNAPL Skimmers Applications
Mining

DOD – DOE Sites

Remediation Sites

Oil Refineries and Petrochemical

Downloads
add remove
Programmable LNAPL Skimmers Downloads
Specs and Drawings
Product Manuals & Drawings
Technical Papers
Related Downloads
Download Selected Files
Download All Files

Certifications

ATEX Certified

Product Support

Need support for the Programmable LNAPL Skimmers?

Related Products

AutoSkimmer LNAPL Pump System

The AutoSkimmer™ Pump System automatically recovers LNAPL layers and pumps on demand when the pump is filled. Combining the industry-leading AutoPump with the rugged SPG floatin...

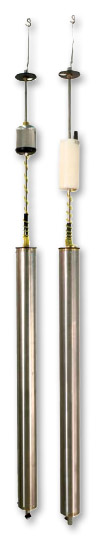

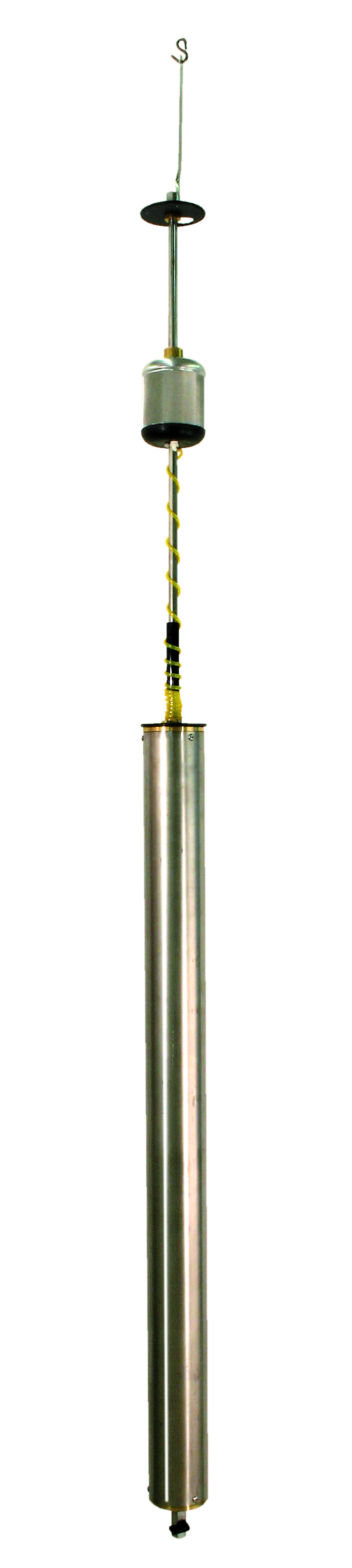

Passive Skimmers

The QED family of Passive Skimmers has been designed for product-only (LNAPL) recovery applications in sites where active pumping systems are not applicable due to existing cond...

C100M Digital Controller

This solar-powered digital controller can be used to set pump refill and discharge cycle times for the Programmable Genie®, and Pulse Pump®.
