MicroPurge MP15 Backpack Controller

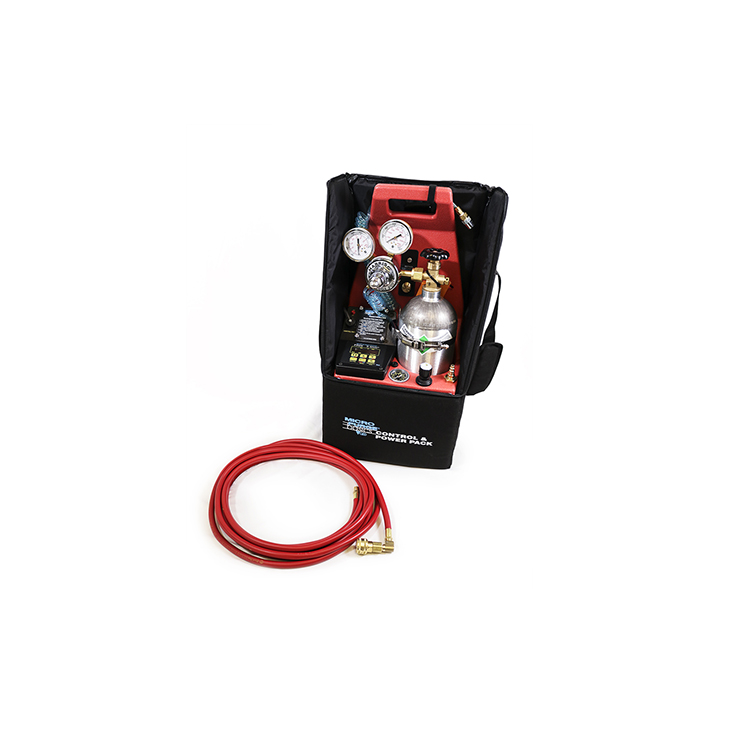

The MP15 MicroPurge® basics™ Sample Pack combines advanced lowflow control with the quiet power of a built-in compressed gas source, for the ultimate in portability and ease of use. The simplified flow and drawdown control features of basics control are housed in a molded case along with a lightweight CO2 cylinder, putting everything you need to operate a bladder pump into one easily portable unit. A standard padded nylon case protects the MP15 in transport, provides over-the-shoulder on-site carrying convenience, and even has a hook on the back to let you hang it from the well casing during sampling. The MP15 also includes a bypass fitting, so you can now use one handy unit to sample from both hard to reach wells and from wells accessible with larger gas cylinders and/or compressors.
Product Description
Specification
Downloads
Product Description
add remove

The ultimate in control and power for over-the-shoulder, low-flow sampling. The MP15 has the power you want in an easy to carry package

Key Specifications
  • Exclusive MicroPurge control mode
  • Multi-mode digital control
  • Full digital display
  • Connection port for optional MP30 Drawdown/Water Level Meter
  • Rugged, weatherproof compact case
  • Built-in compressed gas source
  • Padded backpack carrying case
Benefits
  • Digitally recreates expert sampling strategies
  • All parameters are easily visible in low- or full light conditions
  • Control modes automatically selected when MP30 detects drawdown limits
  • MP10 is fully portable and protected for use in any weather conditions
  • Portable compressed gas source for remote power
  • Hands free power source for complete control of sampling
Specification
add remove
Key Specifications
  • Self contained in weatherproof, structural resin case
  • 2-line, 16 character LCD display
  • Six input keys
  • Three AA batteries, 50,000 cycle life
  • Max Pressure: 120 PSIG (8.3 barg)
  • Max Pumping Depth: 250 ft (75 m)
  • Gas Cylinder: 5 lb (2.3 kg) CO2
  • Cylinder Life: >3 hours at 75 ft (23 m) pump depth
