MicroPurge® MP100 Peristaltic Pump System

QED’s MicroPurge MP100 Peristaltic Pump system combines efficient, quiet operation with exceptional flow control.
Request a quote
Product Description
Specification
Downloads
Product Description
add remove

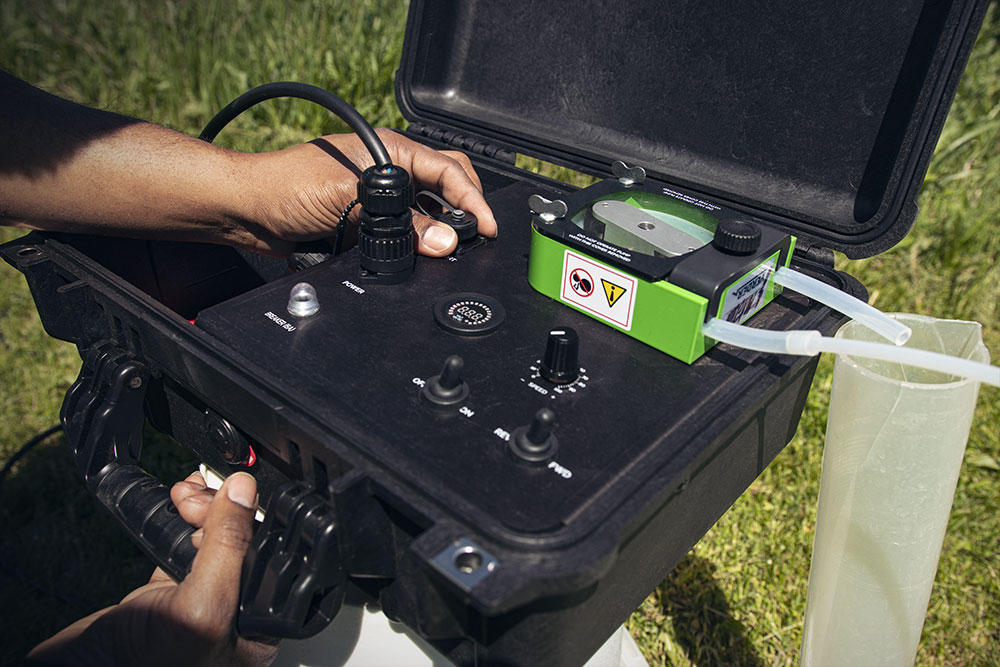

QED’s MicroPurge MP100 Peristaltic Pump system combines an efficient motor and pump head for smooth, quiet operation with exceptional flow control. Built into a hard shell case, the pump head and control panel are fully enclosed for safe field transport and shipping – no need for a separate outer case. The low power consumption of the brushless DC motor provides long battery life, making field work more efficient, and the integral voltmeter on the panel gives you a quick look at your battery charge status. Complete your dedicated sampling system with drop tubing, drop tubing weight kits and easy to install well caps. The MicroPurge MP100 is the new breed of peristaltic pump, designed for the field with you in mind.

Key Features
  • Rugged design with the pump head fully enclosed in a high strength molded case
  • Brushless DC motor for low power consumption and longer battery life
  • Flow rates to 1,500 ml/minute and lifts up to 30 feet using popular silicone tubing sizes
  • Simple flow control from zero to maximum for easier sample collection
  • Complete dedicated system includes optional well caps, drop tubing and tubing weights
Specification
add remove
Key Features
  • Pump type: Two roller peristaltic pump with brushless DC motor, fixed stator housing and removable guard cover
  • Power source: 12VDC storage battery (SLA, AGM) or 12.6V @ 3A minimum power supply
  • Operating Current: 2.0A
  • Pump Tubing Sizes: L/S 15, L/S 24, L/S 35
  • Flow rates: L/S 15: 550 ml/min @ 15 feet (4.6m) lift; 700 ml/min maximum, < 10 ml/min minimum
  • Flow rates: L/S 24: 650 ml/min @ 15 feet (4.6m) lift; 1,100 ml/min maximum, < 10 ml/min minimum
  • Flow rates: L/S 35: 480 ml/min @ 15 feet (4.6m) lift; 1,500 ml/min maximum, < 10 ml/min minimum
  • Maximum lift depth: 30 feet (9m) at sea level*
  • Case Dimensions: 16.5” L x 13.0” W x 7.0” H (42cm L x 33cm W x 17cm H)
  • Weight: 3.5 lbs (6.1 kg)
  • Warranty: 1 year (see operators manual for details)
Downloads
add remove
MicroPurge® MP100 Peristaltic Pump System Downloads
Product Data Sheets & Specifications
Product Manuals & Drawings
Download Selected Files
Download All Files

Product Support

Need support for the MicroPurge® MP100 Peristaltic Pump System?
