Huberg Natural Gas Detector: Laser One

Home Products Huberg Natural Gas Detector: LASER One

Using LASER technology, the LASER One instrument is ideal for detection and classification of natural gas leaks.

Request a quote

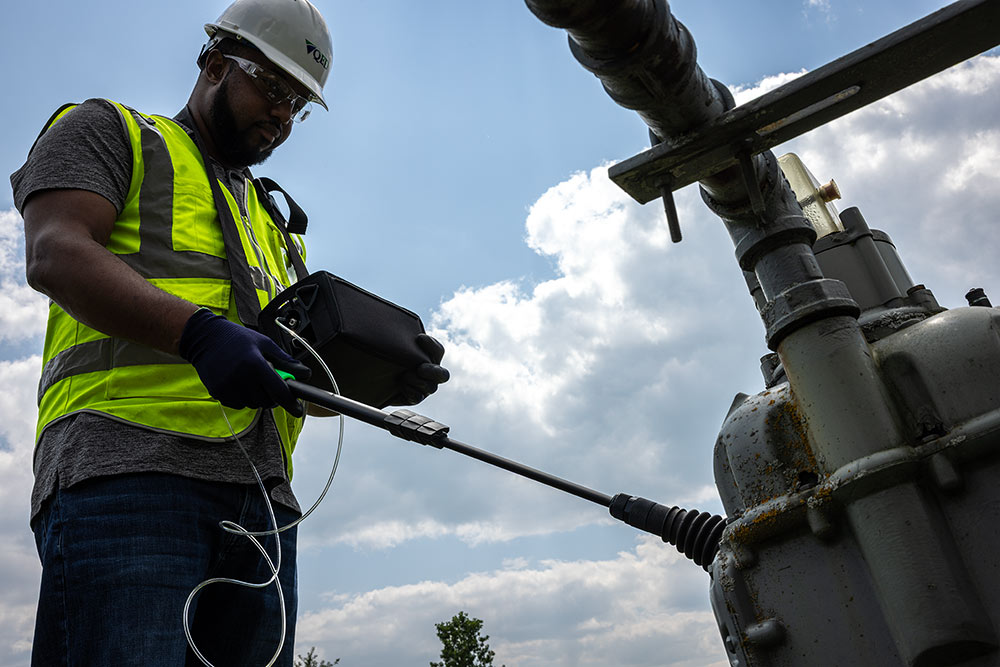

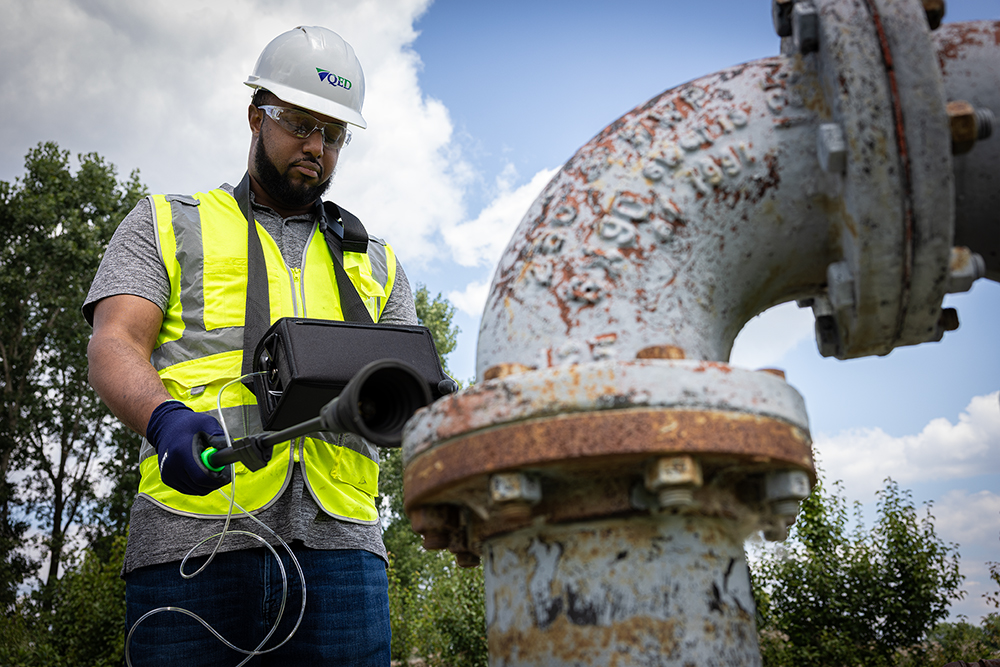

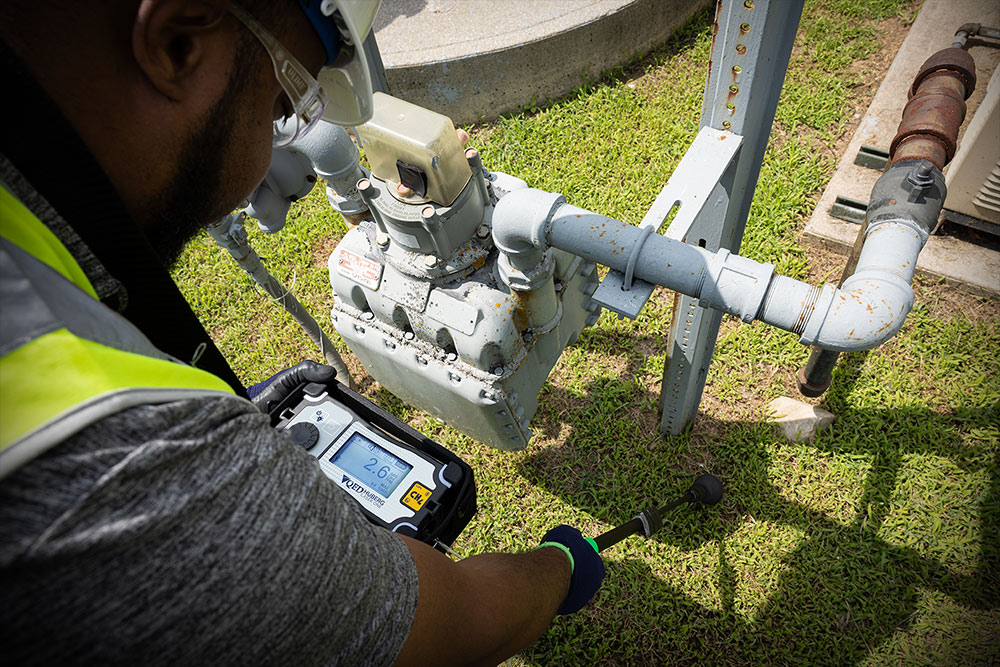

The LASER One is a professional instrument for the detection and localization of methane gas leaks, it is selective and it requires no gas cylinder. Suitable for the detection of leaks in underground and above ground pipelines. The instrument can be used for better quantification of CH4 (methane) emissions from infrastructure and has great results even with biogas leaks in the biogas plants, thanks to the high precision of LASER technology. Equipped with GPS antenna and Bluetooth for data transfer from the instrument to a PC or PDA.

Key Specifications

Sensitivity to CH4
Self contained
Rapid start-up and detection
GPS tracking
ATEX certified

Benefits

No cross-gas or false readings
No additional devices for operation
No flame or external hydrogen required
Accurate reporting which meets and maintains compliance requirements

Key Specifications

Target Gas: Methane (CH4)
Detection Method: Tunable Diode LASER Absorption Spectroscopy
Measurement Range: 0.5ppm to 100% by volume
Instrument Resolution: 0.1 ppm (0-100 ppm); 1 ppm (101-1,000 ppm); 5 ppm (1,001 - 5,000 ppm); 10 ppm (5,001 - 10,000 ppm)
Response Time: T90 = 2.5 sec; T90 = 3.5 sec (w/probe)
Intrinsic Safety: ATEX Zone 1 EX II 2 G Ex ib op is IIB T3 Gb; Tamb -22 to 122F (-30C to +50C)
Warm-up Time: 30 to 60 seconds
