Easy Level Liquid Indicator™

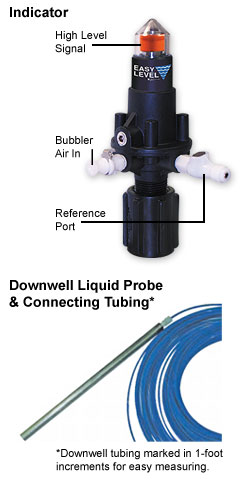

The Easy Level™ liquid level indicator is faster and easier than traditional liquid level measurement with portable tapes. If the liquid level rises above the chosen set point, the bright orange indicator will appear in the Easy Level’s clear dome top. If there is a pump in the well, the high level indication signifies excess liquid inflow rates or that the pump may need service. For wells without pumps, a high level may indicate that a pump is needed to maintain the leachate levels below regulatory limits or improve gas collection efficiency. Using portable liquid level tapes in landfill gas collection wells requires the wellhead to be opened, which allows air into the well and interrupts gas collection. Also, field crews using reel type meters are exposed to any gases that may be released, and to liquids that can coat the tape and probe. Unlike portable tapes that can be triggered by foam, the Easy Level will only indicate a high level when the liquid in the well has exceeded the predetermined level. The Easy Level can also be used with a hand-held analog gauge or digital display to allow easy measurement of the actual liquid level without opening a well or riser.
Request a quote
Product Description
Specification
Applications
Downloads
Product Description
add remove

The new Easy Level™ Liquid Level Indicator makes it easy to see if the liquid level has exceeded the maximum level desired.

Key Specifications
  • Works without opening the wellhead or cap – no air gets in, no gases get out and no vacuum interruption
  • No batteries, electric power supply or compressed air source required
  • No false indication due to foam in the well or riser
  • Internal reference port compensates for pressure or vacuum conditions over liquid
  • Connect the optional portable liquid level measurement meter to display actual height of liquid over liquid probe
  • Indicator can be located up to 200 ft. from liquid probe
Specification
add remove
Key Specifications
  • Max. Depth to Liquid ft. (m): 200 (61)
  • Min. liquid level above probe bottom needed to activate in. (cm): 16 (40.6)
  • Max. downwell probe OD in. (cm): .75 (1.9)
  • Tubing in. (cm) (Nylon*): 1/4 (0.64) OD
  • *Other tubing materials may be available if desired based on chemical compatibility; please consult QED.
Applications
add remove
Easy Level Liquid Indicator™ Applications
Landfill

Mining

Industrial Sites

Oil Refineries and Petrochemical

DOD / DOE Sites

Remediation Sites
