What is biomethane?

Biomethane is similar to natural gas, as it is a pipeline-quality product. In order to upgrade biogas to biomethane, you need a biogas upgrading plant, which is what produces the biomethane. In addition, since it is a pipeline-quality product, the biomethane produced is similar to natural gas. Due to its similarity, it is also a better alternative to fossil fuels as it is carbon dioxide neutral, making it better for the environment. This makes it ideal to be used as a transport fuel, as it can be injected into the natural gas grid or turned into a compressed natural gas.

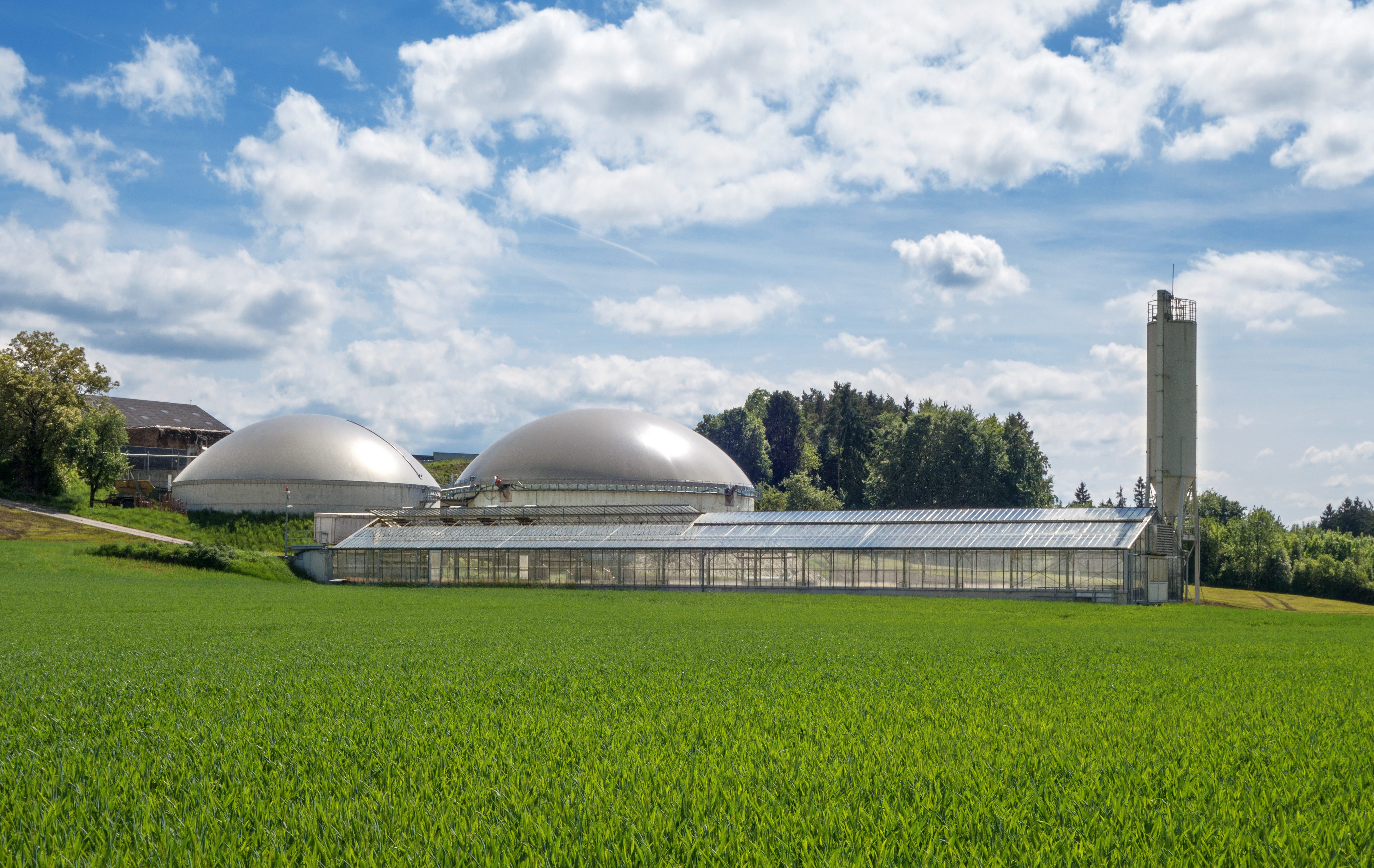

How is biomethane produced?

It is produced by converting biomass and waste, which can include manure, agricultural waste and expired food. The biogas, which mostly contains methane and carbon dioxide, is then purified by a biogas upgrading system. Gas separation occurs during the process of biogas upgrading – which causes the carbon dioxide and other components to be filtered out. This includes chemical components such as carbon dioxide, (40-45%), air (1%), hydrogen sulfide, water, volatile organic components and siloxanes.

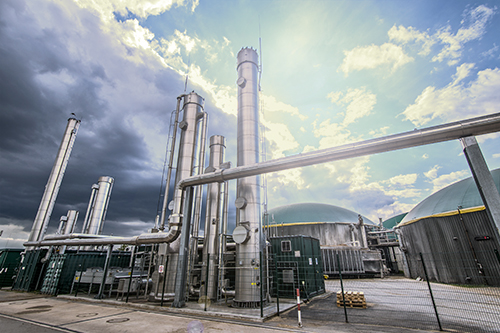

What is biogas upgrading?

A biogas upgrader is a facility that is used to concentrate the methane in biogas to natural gas standards, which therefore produces biomethane. This process is also known as biogas purification, and it is a more appealing alternative than using a heat and power system (CHP).

The process entails separating methane from carbon dioxide and other gases and contaminants from biogas. Concentrated biogas is known as ‘biomethane’ or ‘renewable natural gas’ (RNG), and the resulting biomethane can then be used for vehicle fuel or injection into the natural gas grid network.

How long does it take to produce biogas?

The amount of time spent producing biogas varies. Plants that produce biogas for use as fuel will speed up the decomposition process artificially by using an anaerobic digestion project. This process can take 30 days to complete in a less controlled environment. For example, landfill biogas production can take considerably longer.

This is because it is harder to produce an oxygen-free environment in a landfill. Therefore, before methane production can take place, aerobic bacteria must use up the oxygen within the waste. On average, this process can take 1 year to complete, then once it’s completed, methane production can commence. As landfills are outside, ambient conditions can affect the deoxygenation rate and how long the methane production takes. For instance, cold and dry climates will slow the process down; whereas, warm and humid conditions will accelerate the decomposition.

Why monitor and analyze the gas?

Biomethane is a biogas which has been upgraded to a quality similar to fossil natural gas and has a methane concentration of 90% or greater, which is used for vehicle fuel or injection into the natural gas grid network.

In a natural gas network, the grid entry unit governs the flow of gas into the network and will require the gas quality to be of a sufficient level for entry, typically over 95% methane. The verification of the scrubbing process for the removal of H2S and the overall purification process all need to be monitored through the analysis of the composition of the gas.

Benefits of biogas

  • Eco-friendly – it’s a renewable source of energy so your business will be decreasing its carbon footprint, by emitting fewer greenhouse gases.
  • Reduces soil and water pollution – biogas generation can improve water and soil quality, as anaerobic digestion deactivates pathogens and parasites.
  • Low-cost technology – the technology used to produce biogas is relatively cheap.

Why monitor and analyze the gas I produce?

Biomethane, is a biogas which has been upgraded to a quality similar to fossil natural gas and having a methane concentration of 90% or greater. Biomethane is used for vehicle fuel or for injection into the natural gas grid network. In a natural gas network, the grid entry unit governs the flow of gas into the network and will require the gas quality to be of sufficient level for entry, typically over 95% methane. The verification of the scrubbing process for the removal of H2S and the overall purification process all need to be monitored through the analysis of the composition of the gas.

What benefits will I get?

Return on investment through maximizing energy injection to the grid Validation of the overall purification process Grid entry unit does not shut off and force the gas back through the entire process again Reduction in flaring Reduction in Greenhouse Gas emissions.

How do I do it?

Fixed in line systems offering continuous monitoring with auto-calibration once the gas has been purified. These systems connect via industry standard protocols to the operators control systems housed on site.

Biomethane, is a biogas which has been upgraded to a quality similar to fossil natural gas and having a methane concentration of 90% or greater. Biomethane is used for vehicle fuel or for injection into the natural gas grid network. In a natural gas network, the grid entry unit governs the flow of gas into the network and will require the gas quality to be of sufficient level for entry, typically over 95% methane. The verification of the scrubbing process for the removal of H2S and the overall purification process all need to be monitored through the analysis of the composition of the gas.

Return on investment through maximizing energy injection to the grid Validation of the overall purification process Grid entry unit does not shut off and force the gas back through the entire process again Reduction in flaring Reduction in Greenhouse Gas emissions.

Fixed in line systems offering continuous monitoring with auto-calibration once the gas has been purified. These systems connect via industry standard protocols to the operators control systems housed on site.



What is Biogas Upgrading?

Biogas upgrading is the process of turning Biogas into Biomethane. Converting Biogas into Biomethane removes carbon dioxide, hydrogen sulphide, water and contaminants from the biogas. The resulting Biomethane can then be used for vehicle fuel or for injection into the natural gas grid network.
Read more

Related Products

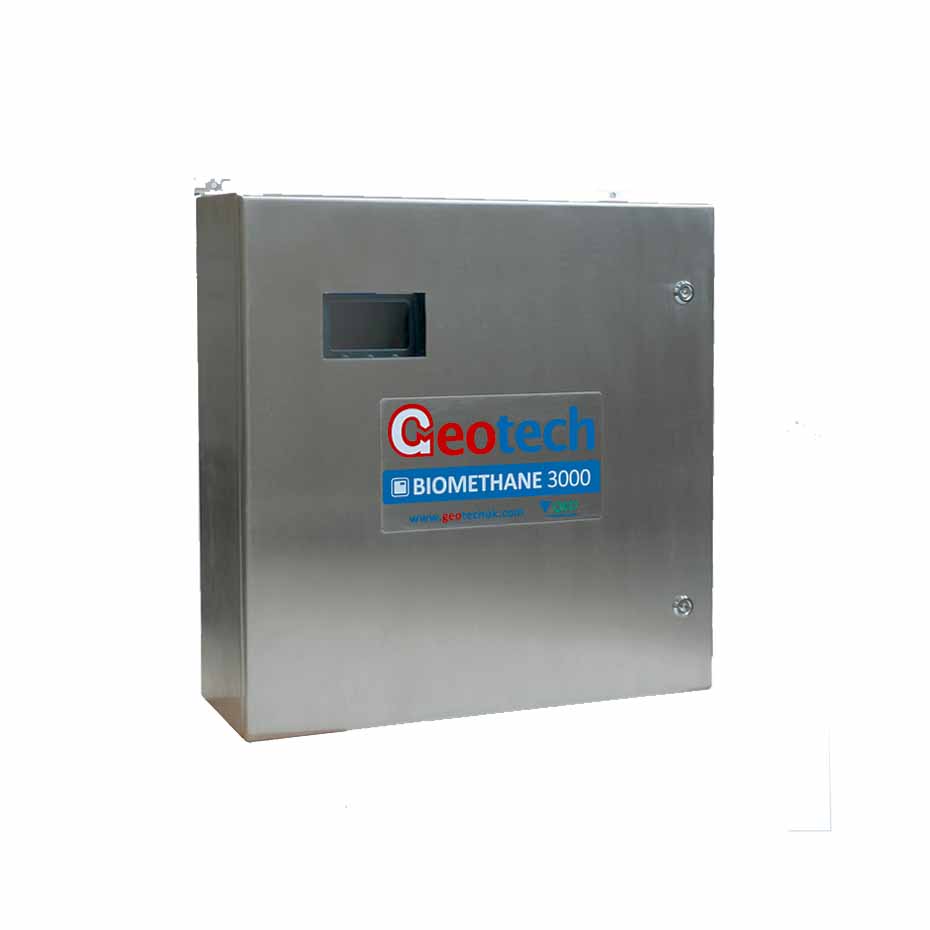

Methane and Oxygen Reader: Biomethane 3000

The BIOMETHANE3000 is designed for high accuracy methane and oxygen readings for biomethane applications. ATEX, CSA and IECEx certified,
